Kamoer X2SR Water Change System


Notify me when this product is available:

X2SR is a Wi-Fi controllable water change system. The user can remotely control it through the mobile phone App. The user can use the X2SR to automatically change the water in their own sea or fresh water tanks at a fixed time and quantitatively.

The automatic water replenishment function can be completed through the submersible pump interface. In response to possible overflow risks, X2SR is equipped with an anti-overflow sensor as standard. When the water level reaches the anti-overflow sensor, an alarm will be triggered and the water supply and change will stop.

Basic Parameters

  • Flow: More than 900ml/min
  • Power Adapter Input: 100VAC -240VAC Output: DC24V 1.9A
  • Number of dosing: 24 times/day-1 time/99 days
  • Interface WiFi (App remote control)
  • Working environment: Temperatures: 0 - 70℃; Humidity: 10% - 90% (non-condensation)

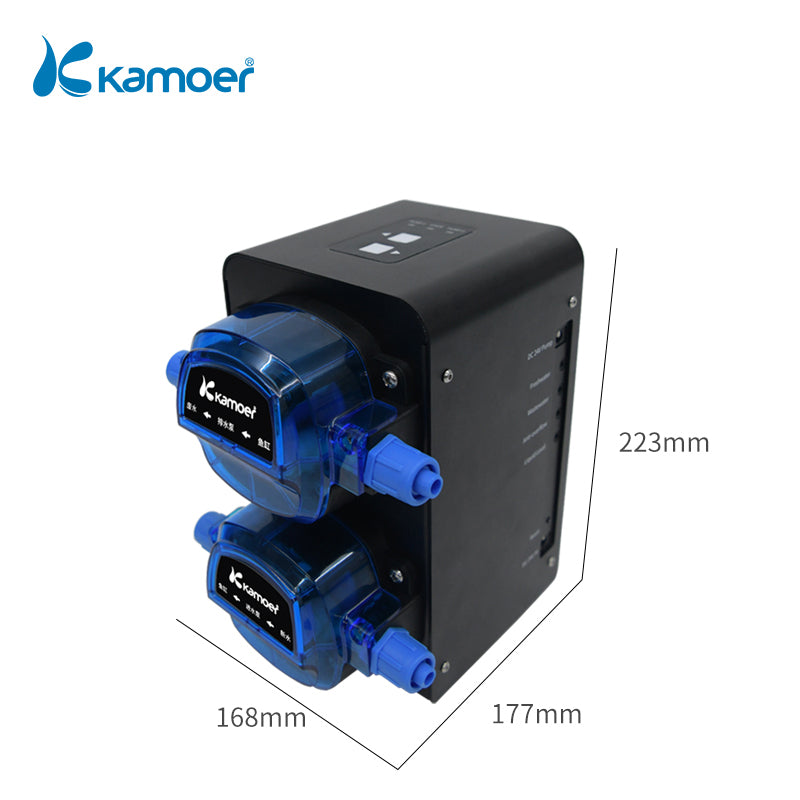

  • Dimensions (LxWxH): 168x177x223mm (including pump head)
  • Weight: 4.106KG (not including power supply)

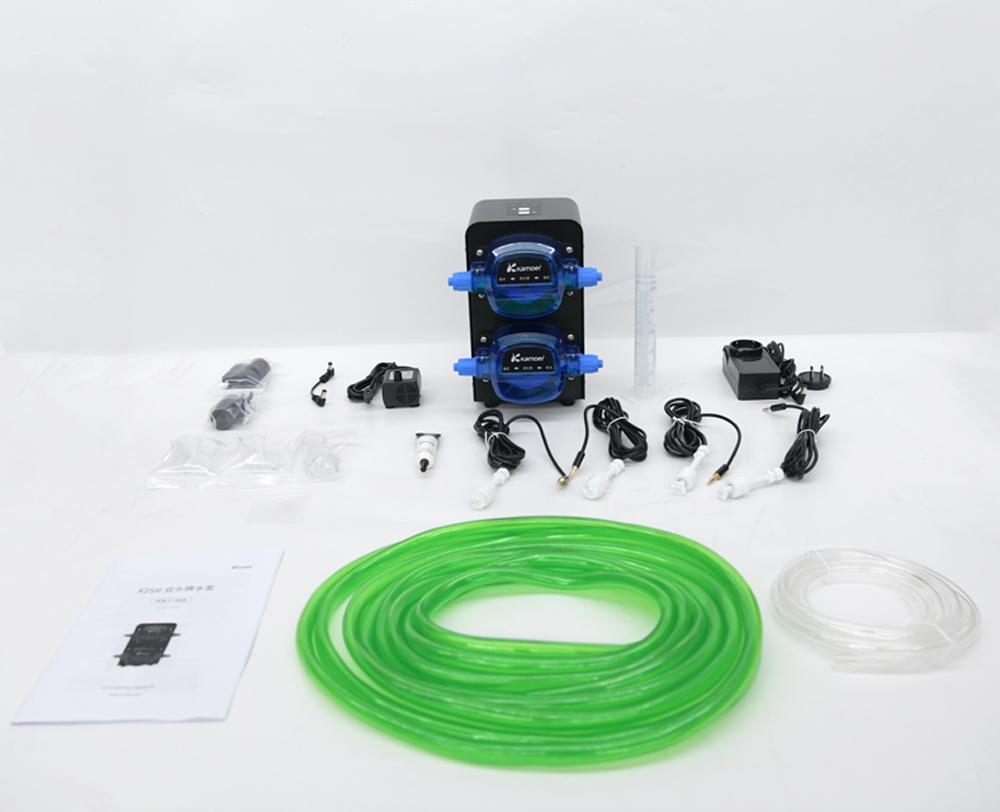

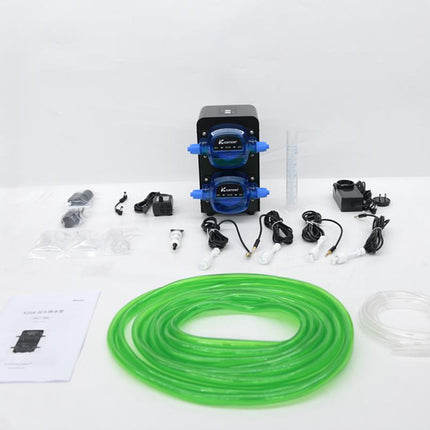

Packing List

01 Host X2SR ×1 02 Power adapter body ×1(DC24V 1.9A) 03 Power adapter plug ×1(US/UK/EU/AU) ×1 04 Plastic cylinder (50ml) ×1 05 PVC tube 9.5*12.5mm; green 6m 06 Kamoer tube manifold Transparent ×3 07 Float level sensor(headphone plug) ×4 08 Float level sensor bracket ×4 09 Magnet (balck) ×8 10 Submersible pump(DC 24V) ×1 11 Male to male line ×1 12 PVC connecting pipe for auto top-off 8*11mm transparent 1.5m 13 Anti-siphon connector(1/4 straight) ×1 14 Grease ×10g ×1 15 Quick start guide ×1 16 Qualified certification ×1

Various Applications

More Details

  1. Outlet of drain pump, connect to waste water bucket
  2. Inlet of drain pump, connect to the fish tank
  3. Outlet of refill pump, connect to the fish tank
  4. Inlet of refill pump, connect to fresh sea water
  5. DC24V pump, connect to submersible pump
  6. Liquid level sensor for detecting whether fresh water is empty
  7. Liquid level sensor for detecting whether waste water is full
  8. Anti-overflow sensor for detecting whether the tank reaches the warning water level
  9. Liquid level sensor used to maintain the normal water level of the fish tank
  10. Reset button for configuring the network
  11. DC24V IN, power input
  12. Drain pump running indicator
  13. Power/Wi-Fi status indicator
  14. Refill pump running indicator
  15. Button of Drain pump, long press the button to run
  16. Button of Refill pump, long press the button to run

Installation Method

01 App download Note: This App supports Apple devices with iOS9.1 and above, and Android devices with Android4.4 and above.
02 Register account Open the App, select the mobile registration or email registration method, and follow the App prompts to complete the account registration.
03 View tutorial On the device list page, click the icon "?" in the upper right corner to enter the "Tutorial" page. On the tutorial page, select "X2SR" to view the tutorial. The tutorial includes the user manual and Frequently Asked Questions.

Indicator Light Description

▲ Note: The X2SR uses red and yellow two-color indicator lights. When the yellow light is on or flashing, the red light is off.
