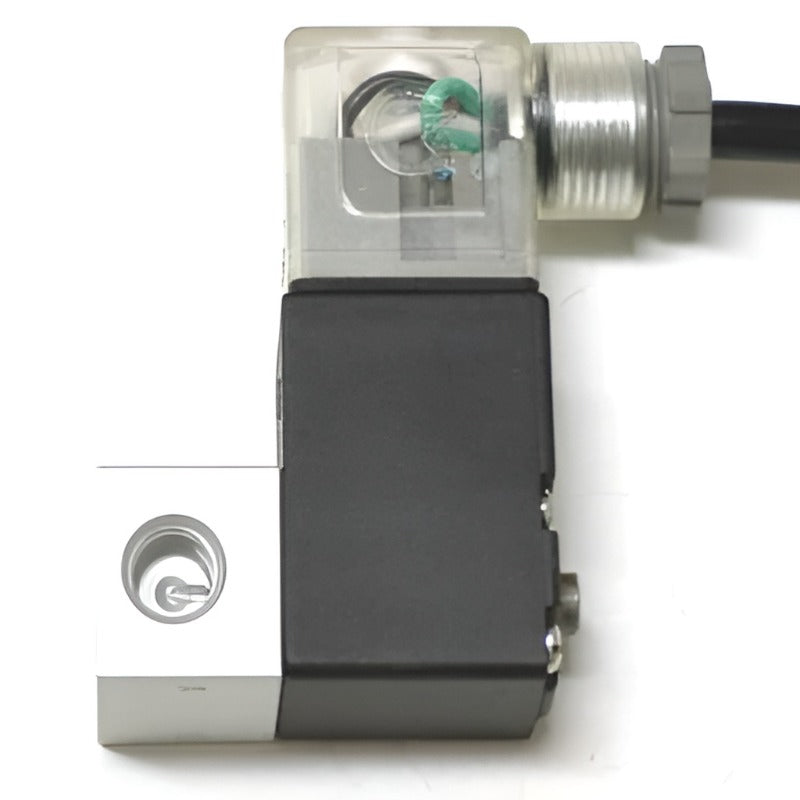

SAGA Solenoid
R 1,580.00
|
Patented, Variable Magnetic Circuit, High Efficiency Operating Voltage : Full Range AC100V to 230V . Can Be High Speed Drive 6000 cycle/Minute while use DC150V. No Vibration Noise Sound from current flow. |
| Media | Air, Water, Oil inert gases |
| Operating method | Direct acting |
| Model | A2AD 2/2 way, A3AD 3/2 way |
| Effective Sectional area mm2 (CV) | 4.9 (0.27) |
| Pipe joint size | 1/8" / 1/4" |
| Viscosity | 21c ST |
| Service pressure range kgf/cm2 (psi) |
0-20 (0-286) |
| Pressure resistance kgf/cm2 (psi) |
30 (429) |
| Service Temperature range (atmosphere or fluid used) |
-10 to 60ºC |
| Power consumption | AC 110V: 10VA /10mS. (inrush) 0.25 VA (hold) AC 220V: 40VA / 10mS. (inrush) 1VA (hold) |
| Insulation | F class |
| Rating | 100% |
| Protection | IP65 |
| Cable Plug | DIN 43 650 B, 0-250V |
| Body Material | Brass / Stainless steel |
| Seal Material | NBR, FPM |
| Weight (g) | 170 |
