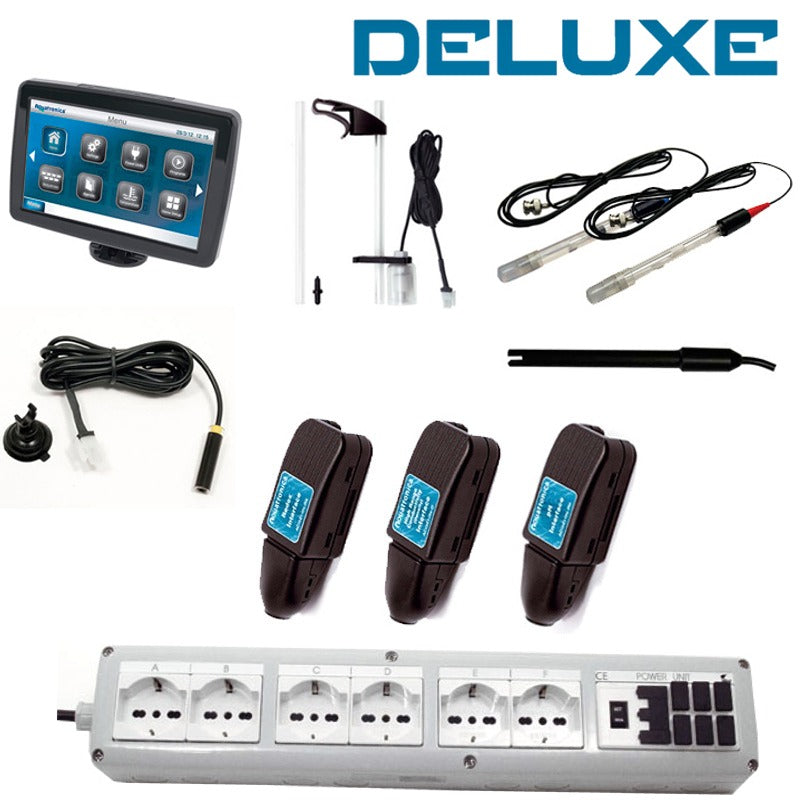

Aquatronica Touch Deluxe Kit


  • Control one or more salt or solft ware aquariums simultaneously, connecting several Power Units (up to 10)
  • Manual control of the sockets (from 6 to 80) in case of any type of maintenance without having to disconnect any of the utilities
  • Multi-timer function on each socket (from 6 to 160 programmes) to control automatic switching on and off of the devices connected
  • Wave effect by alternately activating 2 or 3 movement pumps with repetitive cycles, also alternated with pause
  • Tide effect by alternately activating 2 movement or ascent pumps with fixed 6.15 hour cycles (tide time)
  • Summer funcion for powering and under-sand heating wire at 5 min/h intervals
  • Black-out checks to control the duration of a black out
  • Sound and visual alarms that warn the user in case of malfunction
  • Electronic diary for managing the ruting and extraordinary maintenance reminder
  • Reading and controlling parameters for measuring, viewing and altering (by means of sensor and interfaces) the values measured
  • Automatic recognition of the devices connected (Plug&Play) to the system, automatically enablyng the relative menus.
  • Connection to a PC to streamline all the settings wanted, to create a back-up of the data measured and t update both software and firmware
  • Reprogrammable software to update, free of charge, the TOUCH CONTROLLER with all function that were not available when it was purchased
  • Dimmerability to control and program any dimmerable devices connected to the system
  • Connectivity for monitoring the system remotely

Technical specifications:

  • Dimensions with bracket: 190.5x155x34.5 cm
  • Dimension without bracket: 190.5x128.5x34.5cm
  • Display: 7” colour touch screen
  • Consumption: < 10 W (with display on, without USB devices, connected)
  • Power supply: 110/120V - 50 Hhz
  • Connections: USB, Ethernet, Wi-fi (via commercial wi-fi key that can be purchased separately)
  • Software functions: Touch screen interface, web interface, notification mails, webservice for custom applications.
  • Data filing: USB, SD, internal memory
  • Compatibility: Windows™, Macintosh™
  • USB wi-fi keys compatible: D-Link DWA-131
Netgear VG111v2
Tp-Link TL-WN723N 150 Mbps Wireless N USB Adapter (v1,v2)
Tp-Link TL-WN823N 300 Mbps Wireless N Mini USB Adapter
D-Link DWA-121
